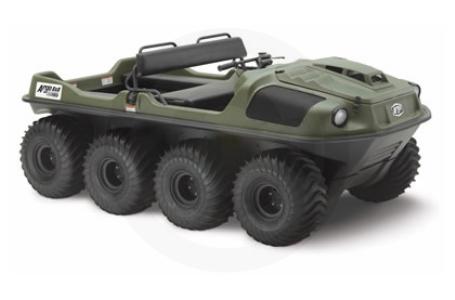

2010 Argo 8x8 750 HDi
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Contoured dash design and premium padded bench seat
  • Power to all wheels for optimal performance in challenging terrain
  • One-piece ergonomic handlebar steering control
  • State-of-the-art automatic continuous variable transmission with high and low range forward and reverse
  • Excellent approach and departure angles to easily overcome obstacles
  • Innovative design and space for up to 6 passengers
  • Low emissions which meet both EPA and CARB standards
  • Three-year limited engine warranty
  • Load capacity of up to 1150 lbs on land or 1000 lbs on water
Specifications
  • Engine: 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year warranty
  • Model: Kohler Aegis LH775
  • Horsepower: 31 hp
  • Displacement: 748cc
  • Cooling: Liquid Cooled
  • Starting: Electric
  • Brakes: Hydraulic
  • Steering: One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease handling, the ARGO steering transmission provide continuous torque to all axles
  • Controls: Right-hand twist grip throttle grip and dash-mounted choke control. Light switch and ignition switch.
  • Clutch: Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission: ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.
  • Drive System: Roller chains drive machined sprockets that are spline-fit onto 1 1/4 in. diameter axles. Bearings are greasable.
  • Frame: Formed steel channel construction, welded for high strength and durability. Polyester powder-coated for lasting protection.
  • Body: Vacuum formed High Molecular Weight Polyethylene.
  • Full Skid Plate: Standard
  • Load Capacity - On Land: 1150 lbs. (521 kg total)
  • Load Capacity - Rear Compartment: No restrictions
  • Load Capacity - On Water: 1000 lbs. (454 kg total)
  • Towing Capacity: 1800 lbs(818 kg
  • Seating Capacity - On Land: 6 persons
  • Seating Capacity - On Water: 4 persons
  • Fuel Capacity: 7.1 Us gallons (27 l) See-through polyethylene fuel tank. 8 hours of operation.
  • Speed - On Land: 20 mph (32 km per hour)
  • Speed- On Water: 2.5 mph (4 km per hour)
  • Shipping Weight: 1295 lbs. (588 kg)
  • Axle Bearing Extentions: Front - Standard Rear - Standard
  • LCD Digital Gauge Cluster: Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Engine Coolant Temperature, Low Oil Pressure, Parking Brake Reminder lights and Check Engine Light.
  • Tires: ARGO AT189 25x12.00-9 NHS
  • Ground Pressure: 2.1 psi (14.5 kPa) using tires 0.67 psi (4.6 kPa) using tracks
  • Ground Clearance - Tires: 9.5 in. (240 mm)
  • Ground Clearance - Tracks: 10.5 in. (265 mm)
  • Operating Conditions: All weather, all terrain, -40C to +40C
Optional Accessories
  • Cargo Tie Down Rings
  • Convertible Top
  • Half-Top
  • Brake/Tail Lights
  • Handrails
  • Heater
  • Mounting Assembly (Brushguard/Winch)
  • Power Winch
  • Receiver Winch (Wiring and Rear Hatch)
  • Remote Control (Winch)
  • Rear Bench Seat
  • Tow Hook
  • Utility Storage Pouch
  • Windshield (Fold-Down)
  • Windshield Wiper
  • Bilge Pump
  • Outboard Motor Bracket
  • Standard Tracks
  • Super Tracks
  • Super Track Ice Cleats
  • Rubber Tracks
  • Brushguard
  • Fog Lights
  • Roll Bar
  • ROPS c/w 2 Seat Belts
  • ROPS & Rear Bench Seat
  • Skid Plate
  • Storage Cover
  • Alternator Kit
  • Roll Bar Light Kit
  • Snow Plow
  • Amphibious Trailer
  • Trailer Hitch Kit
  • Utility Bracket Kit
  • Utility Rack Kit
  • Stretcher Frame Assembly
  • Basket Mount Adapter
  • Stretcher Assembly- Ferno # 9
Standard Equipment
  • LCD Digital Gauge Cluster (Speedometer, tachometer, odometer, voltmeter, engine coolant temperature, plus low oil pressure and parking brake reminder lights)
  • Avenger 750 EFI features an additional check engine light
  • NEW 25" ARGO tires for optimum traction, smooth ride and better water performance
  • Hydraulic vented disk brakes for ease of operation
  • Independent emergency, parking brake
  • Full skid plate for lower body protection
  • Front & rear axle bearing extensions for increased axle and bearing life
  • Convenience Group (12 volt outlet, cup holders, grab handle)

Specifications

Engine
Engine Type 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year warranty
Displacement 748cc
Cooling Liquid Cooled
Ignition Electronic
Chassis
Front Brakes Hydraulic
Front Tire ARGO AT189 25x12.00-9 NHS
Rear Brakes Hydraulic
Rear Tire ARGO AT189 25x12.00-9 NHS
Dimensions
Dry Weight 1295 lbs. (588 kg)
Fuel Capacity 7.1 US gal. (27 l) See-through polyethylene fuel tank. 8 hours of operation.
Ground Clearance Tires: 9.5 in. (240 mm); Tracks: 10.5 in. (265 mm)
Towing Capacity 1800 lbs(818 kg
Transmission
Transmission ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1 1/4 in. diameter axles. Bearings are greasable.
General
Speedometer Digital
Tachometer Digitial
Odometer Digital
Colors Tundra, Yellow, Mossy Oak Shadow Branch, Blue, Red, Black, Realtree Hardwoods Green HD
Warranty 3 year warranty

Compare Models

 Print








Year 2010
Manufacturer Argo
Model 8x8 750 HDi
Style Side x Side
Chassis
Front Suspension
Front Brakes Hydraulic
Front Tire ARGO AT189 25x12.00-9 NHS
Rear Suspension
Rear Brakes Hydraulic
Rear Tire ARGO AT189 25x12.00-9 NHS
Dimensions
Dry Weight 1295 lbs. (588 kg)
Front Travel
Fuel Capacity 7.1 US gal. (27 l) See-through polyethylene fuel tank. 8 hours of operation.
Rear Travel
Wheelbase
Ground Clearance Tires: 9.5 in. (240 mm); Tracks: 10.5 in. (265 mm)
Box Capacity
Rack Capacity
Towing Capacity 1800 lbs(818 kg
Engine
Engine Type 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year warranty
Displacement 748cc
Bore and Stroke
Cooling Liquid Cooled
Compression Ratio
Fuel System
Ignition Electronic
General
Speedometer Digital
Tachometer Digitial
Odometer Digital
Colors Tundra, Yellow, Mossy Oak Shadow Branch, Blue, Red, Black, Realtree Hardwoods Green HD
Warranty 3 year warranty
Transmission
Transmission ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1 1/4 in. diameter axles. Bearings are greasable.
